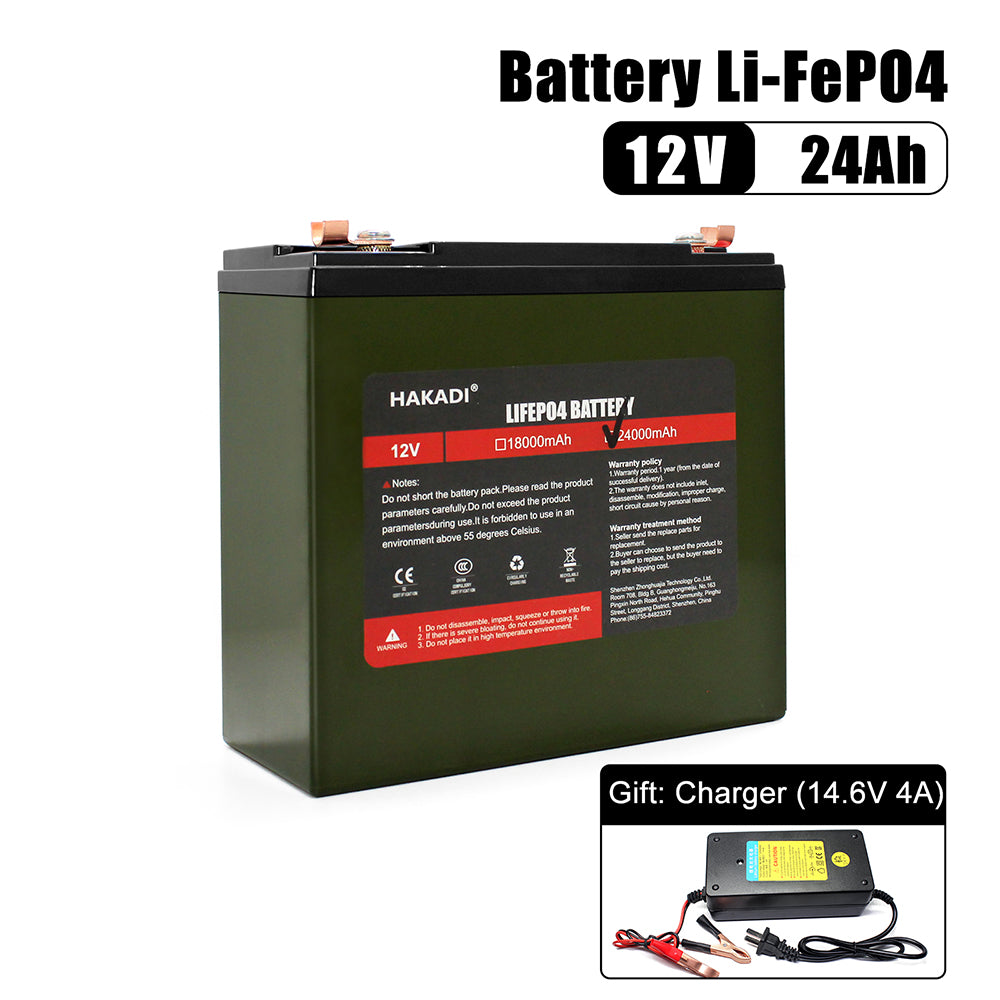

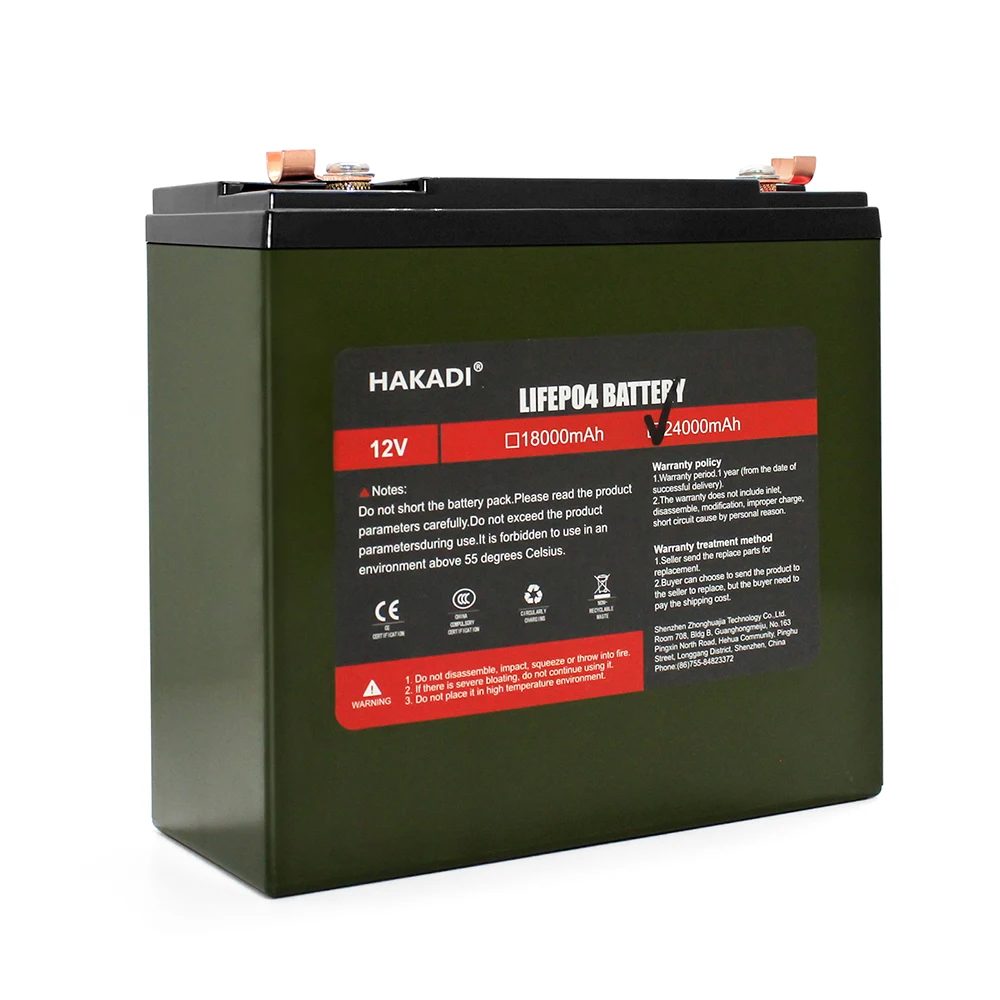

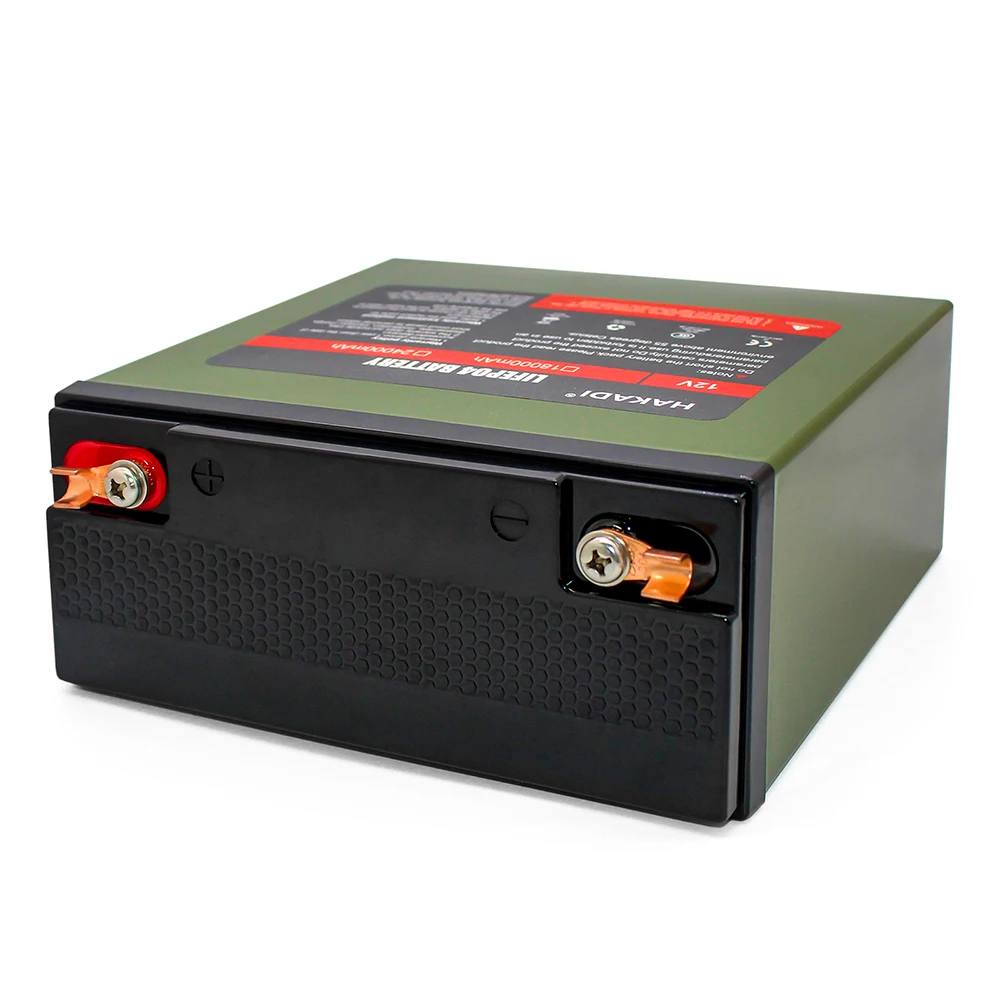

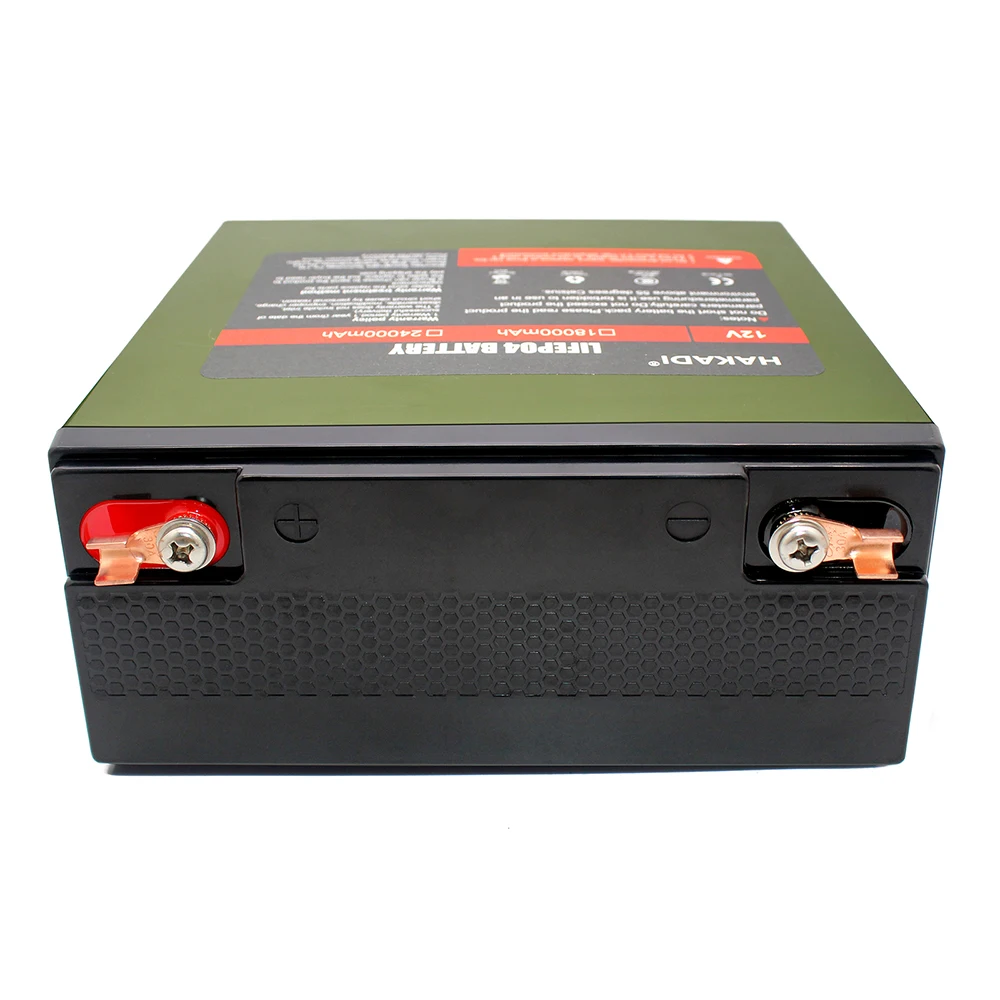

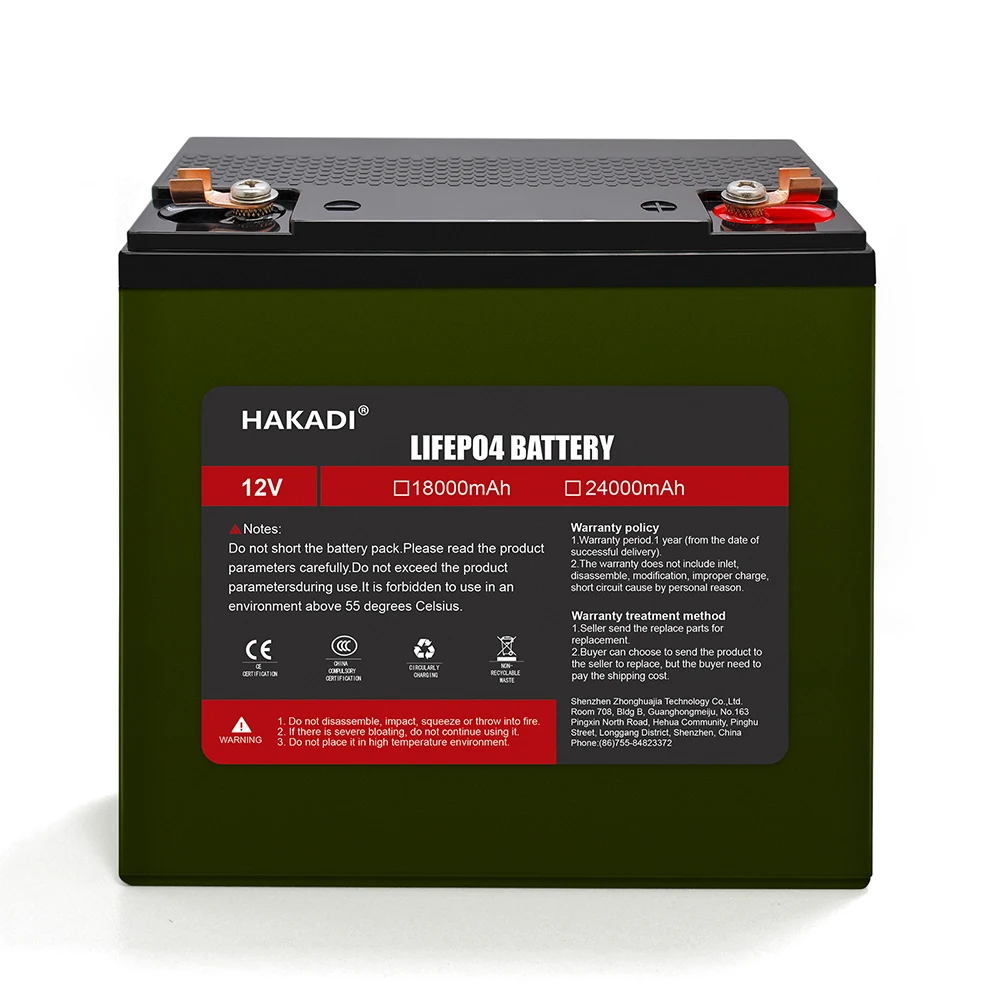

HAKADI LiFePO4 Rechargeable 12V 24Ah Battery Pack With BMS 14.6V 4A Charger For Solar Energy Storage
Couldn't load pickup availability
Materials
Materials
Product Parameters

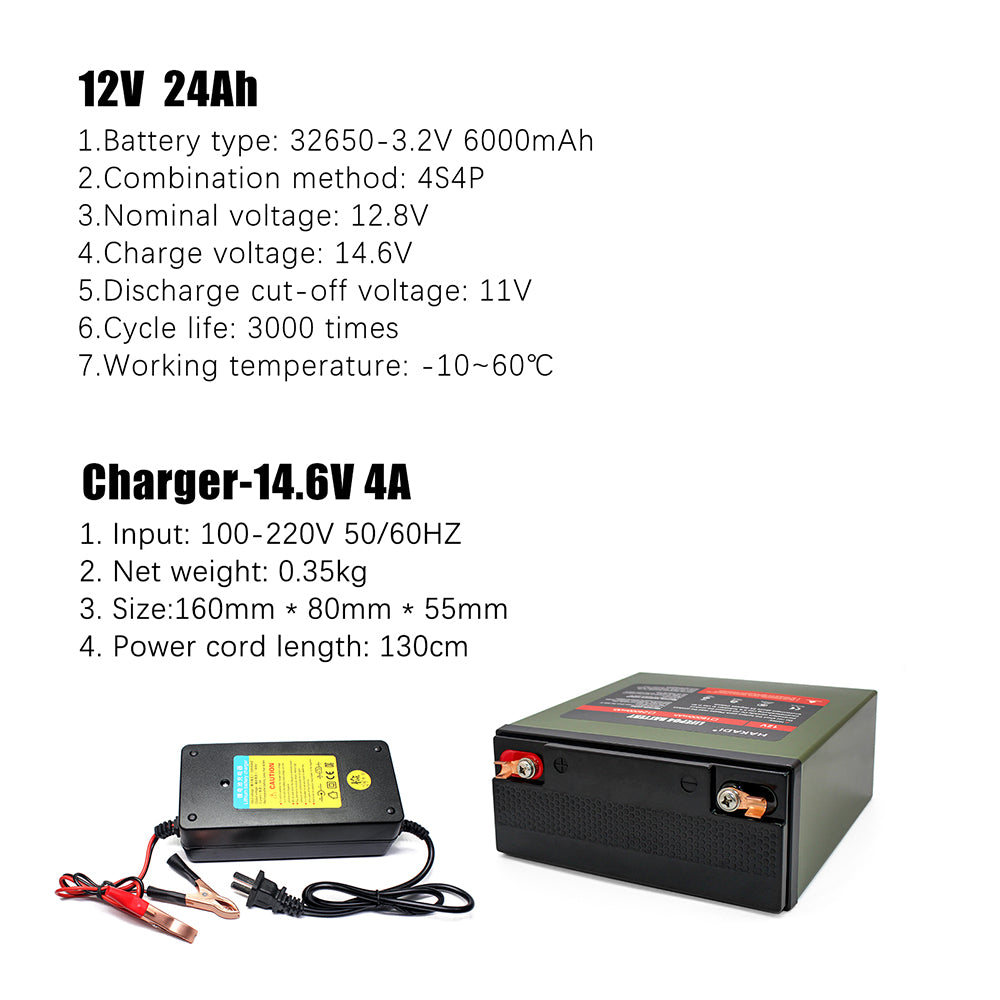

Battery type: Lifepo4 32650-6000mah/21700-3000mah
Combination method: 4S4P/4S8P
Nominal capacity: 24Ah
Nominal voltage: 12.8V

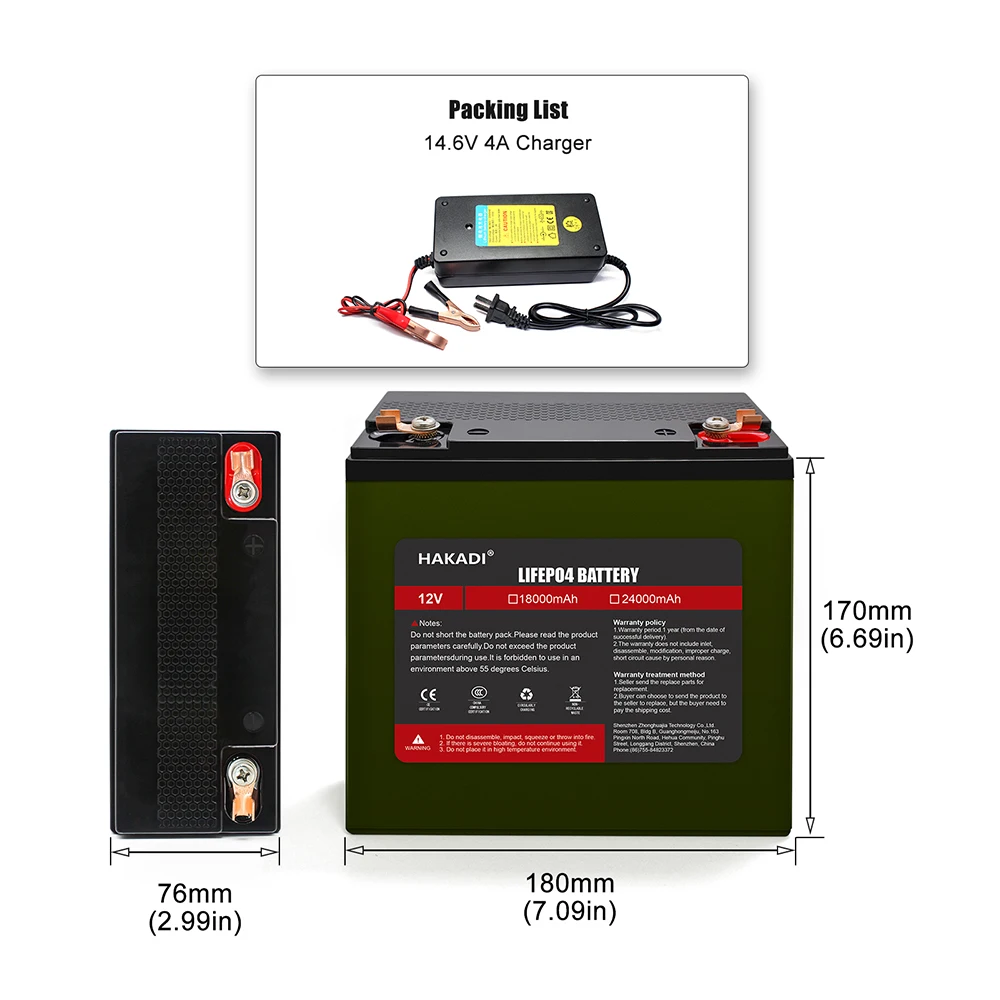

Battery size: 180*170*76mm

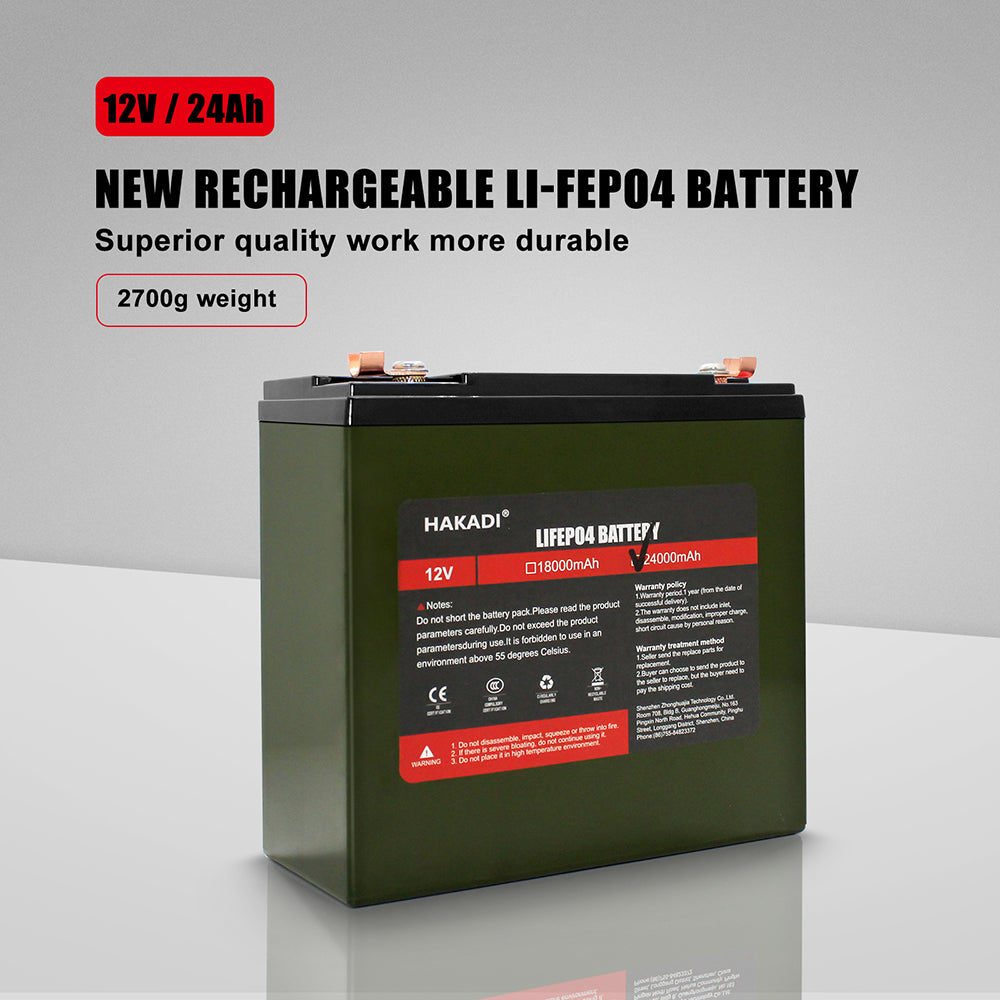

Battery weight: about 2.65kg
Cycle life: more than 3000 times, DOD 80%
Charge voltage : 14.6V
Power: 307.2Wh
Standard charging method: Constant Current 0.2C，Constant Voltage 14.6V，0.01C cut-off
Max. charge current: 12A
Cut-off voltage: 11V
Max Continuous discharge current: 48A (5 min)
BMS protect current: 72A
Operating Temperature
Charging: 0～45℃
Discharge: -10～60℃
Packing List
1×12V 24Ah Lifepo4 Battery pack
1×14.6V 4A charger
Remark
1. 12V 24Ah Lifepo4 battery with build in BMS. It can support connect in series and parallel. But connect in series cannot exceed 30V.
2. The battery BMS protect current is 3C, so it cannot replace Lead-acid battery as the start power.
3. We have lithium, Lifepo4, LTO batteries, accept customized battery pack, we can't update all items here. If you want to customized your own battery, please contact us about your requirement (capacity, voltage, size, discharge current, etc). Thank you
Note:
1. The battery pack use Lifepo4 cell to make, it can replace Lead-acid battery. But before you replace your lead-acid cell, please make sure the charge and discharge parameter can fit the Lifepo4 battery.
2. These battery pack build in BMS, the BMS parameter has set, which cannot support connect the battery in series.
3. If you need higher voltage battery pack, please contact us.
Application
Electric bicycles, tricycles, scooters, golf carts, trolleys, wheelchairs, medical equipment, solar energy supply systems, solar panels, energy storage, power tools, power tools, instruments, electrosprayers, LED lighting, remote control toys ,Inverters, household appliances and emergency equipment areas, etc.
