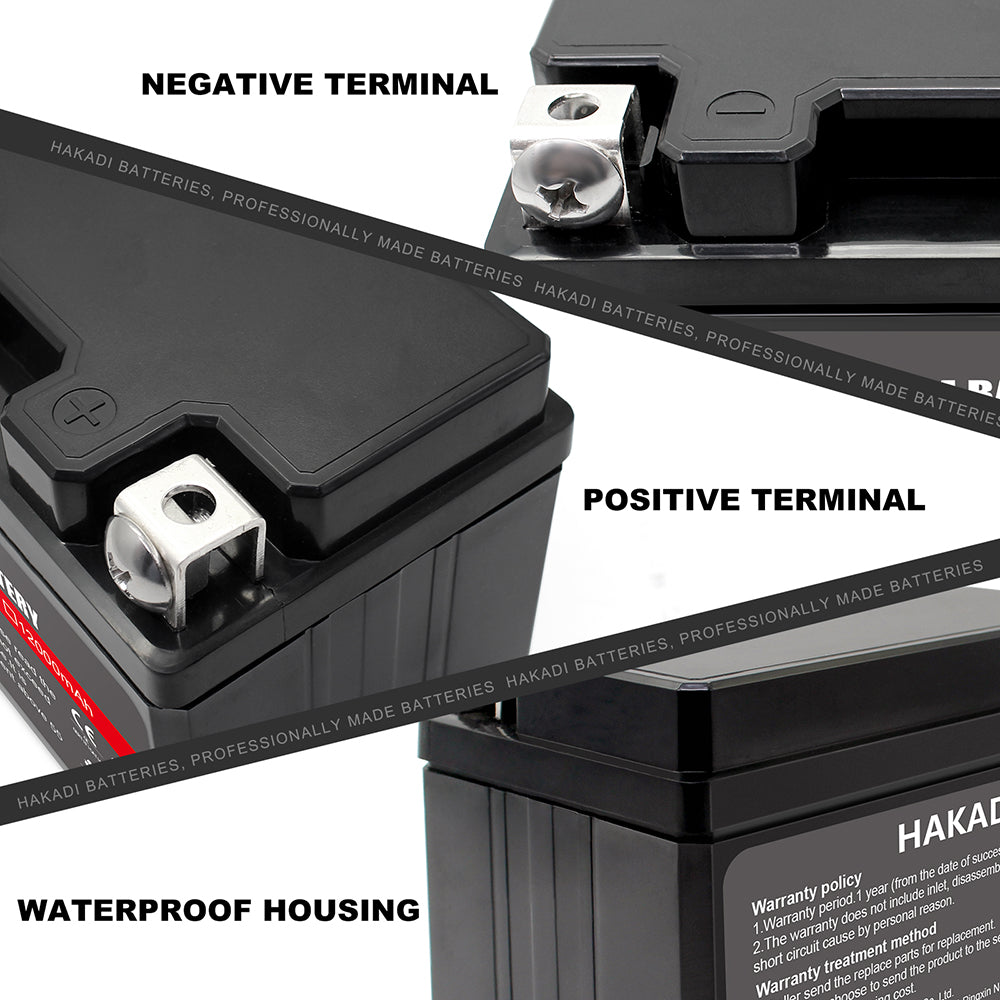

1. Please confirm the positive and negative poles before installing the battery. We are not responsible for any damage to the emergency power supply or vehicle caused by incorrect connection.
2. The battery BMS support series and parallel connection. But connect in series cannot exceed 30V.
3. Tighten the positive and negative poles to avoid poor contact, clean up the oxides of the terminal posts, and avoid poor contact.
4. When the battery is not in use, please save 70% of the power to avoid full charge or loss of power.
5. Avoid short circuit damage to the battery.
6. Avoid over charge the battery.

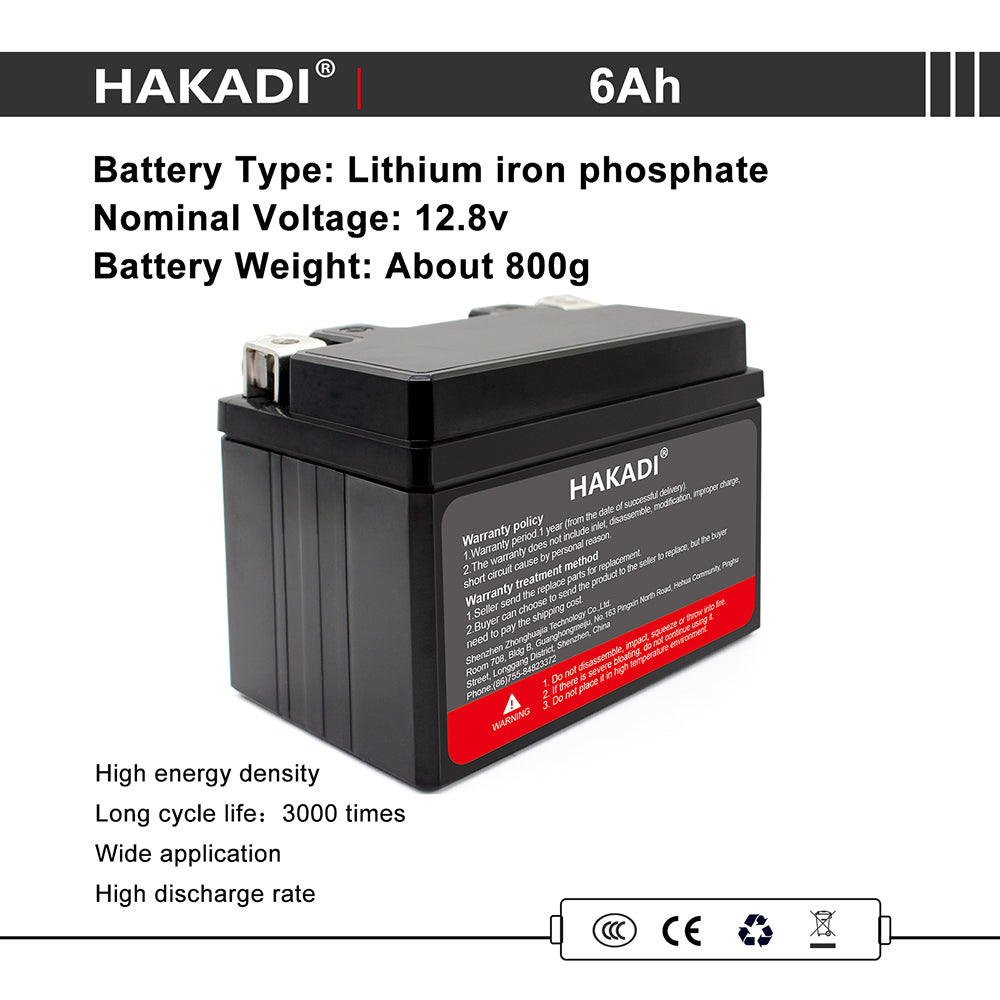

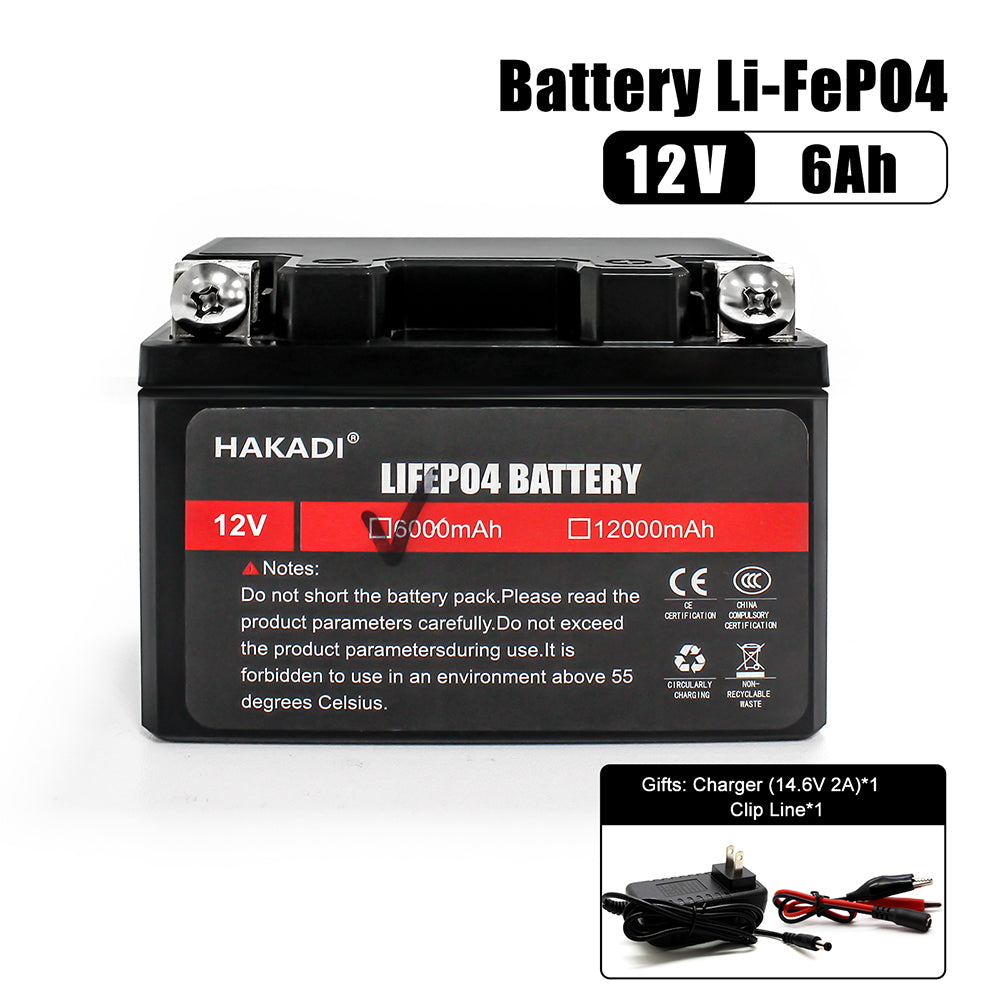

Battery type: 21700-3.2V 3000mah
Combination method: 4S2P
Nominal voltage: 12.8V
Standard capacity: 6Ah

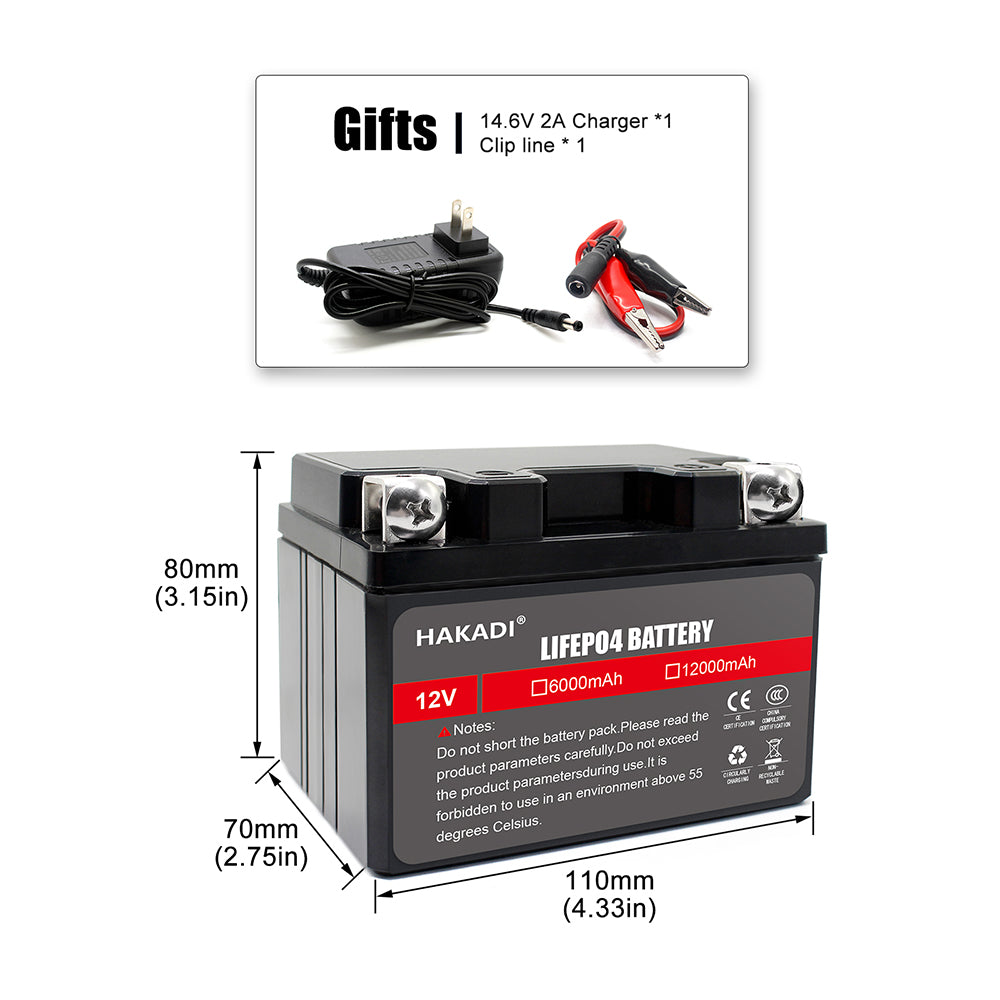

Size: 110*70*80mm
Weight: About 700g
Charge voltage: 14.6V
Cut-off voltage: 11V
Standard charging method: 0.5C
Max. charge current: 6A
Max discharge current: 30A
CCA: 90A
Applicable equipment: 50-125CC motorcycle
Operating Temperature
Charging: 0～45℃
Discharge: -10～60℃
