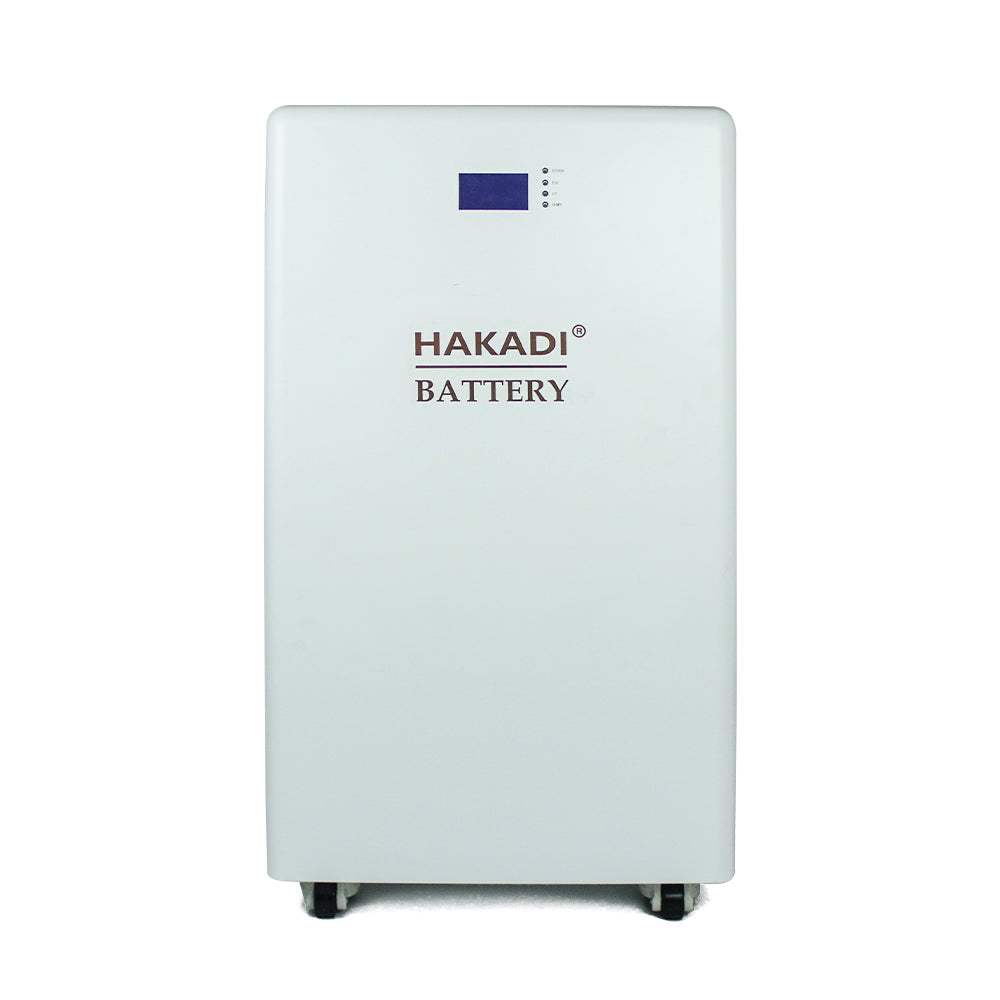

HAKADI 48V 16S 280Ah/304Ah/310Ah DIY Battery Box Built-in Bluetooth BMS for 14-15kwh Home Solar Energy System
Couldn't load pickup availability
Materials
Materials
Specification(48V DIY Battery Box with wheels)
Battery Type:280-314Ah Cell
Material: Stainless Steel
Communication: CANBUS/RS485
BMS: 48V 16S /200A BMS
Nominal Voltage:51.2V
Current 200A
Warranty:5 Years
OEM/ODM: Available
Weight:29kg
Parallel Type:up to 14 batteries
Parts List(does not come with the battery cells！)
1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
1* 200A CNL fuse with fuse holder
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
1 * Weak electric switch
1 * 48V 16S BMS+2*BMS wires+adapter
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap
4 * Battery Terminals (P+ Terminal and P- Terminal)
5* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
4 * Upper and Lower Latch lock
16 * EVA Tape (Between cells)
Other Small Accessories
Download the software:
https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing
Bluetooth App(Android):
https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing
Free shipping from China 35-40Days delivery.
Shipping & Returns
Shipping & Returns
Dimensions
Dimensions
Care Instructions
Care Instructions
Let customers speak for us
Very good products, I have been using them for two months, I am very satisfied. Very good collaboration, prompt response to questions. I RECOMMEND!
Ottimo acquisto
Assistenza ottima e veloci per risolvere il problema
Fast Delivery, good Prince
Акумулятори працюють добре. Рекомендую.
Very nicely packed and quick delivery, all measuring good values. Just now integrated in my setup to absorb all excessive solar power. Let´s hope they go a long way!
Good batery! Thanks
approx. I bought them 2 months ago and they started working immediately, they work very well and know their capacity.
I can only recommend it.
+1 I am thinking of buying the same battery pack
Very good batery!
Great store, very professional and accommodating in resolving issues regarding orders.
It has been operating in the 48 volt assembly for a month. There is no imbalance. The flight is normal.
Product as described and meets the specs. Voltages measured and usage showed stability.
Package arrived in a timely manner.
I am very excited about my item
Now it’s running more then a month without problems
Thank you very much
Je suis ravi de mon achat. Je recommande
Echt Super Ware die Lieferung hat etwas länger gedauert als angeboten
top batterie , correspond a l'annonce , tout est comme décrit
et livraison très rapide
Need a BMS to match your battery pack
Each battery pack requires a BMS to monitor the voltage of the battery pack and increase the service life of the battery pack.
Provide protection against overcharge/over discharge/over current, short circuit, over temperature, etc...
-
Free Shipping and Free Tax！
Our company provides DDP duty-free delivery service, and our company will be responsible for customs clearance and other procedures.
Customers who purchase from us do not need to pay additional tariffs. We will be responsible for door-to-door delivery through logistics companies such as UPS or GLS. -
What does the battery contain?
We will provide free busbars, bolts, epoxy plates, studs for every order
