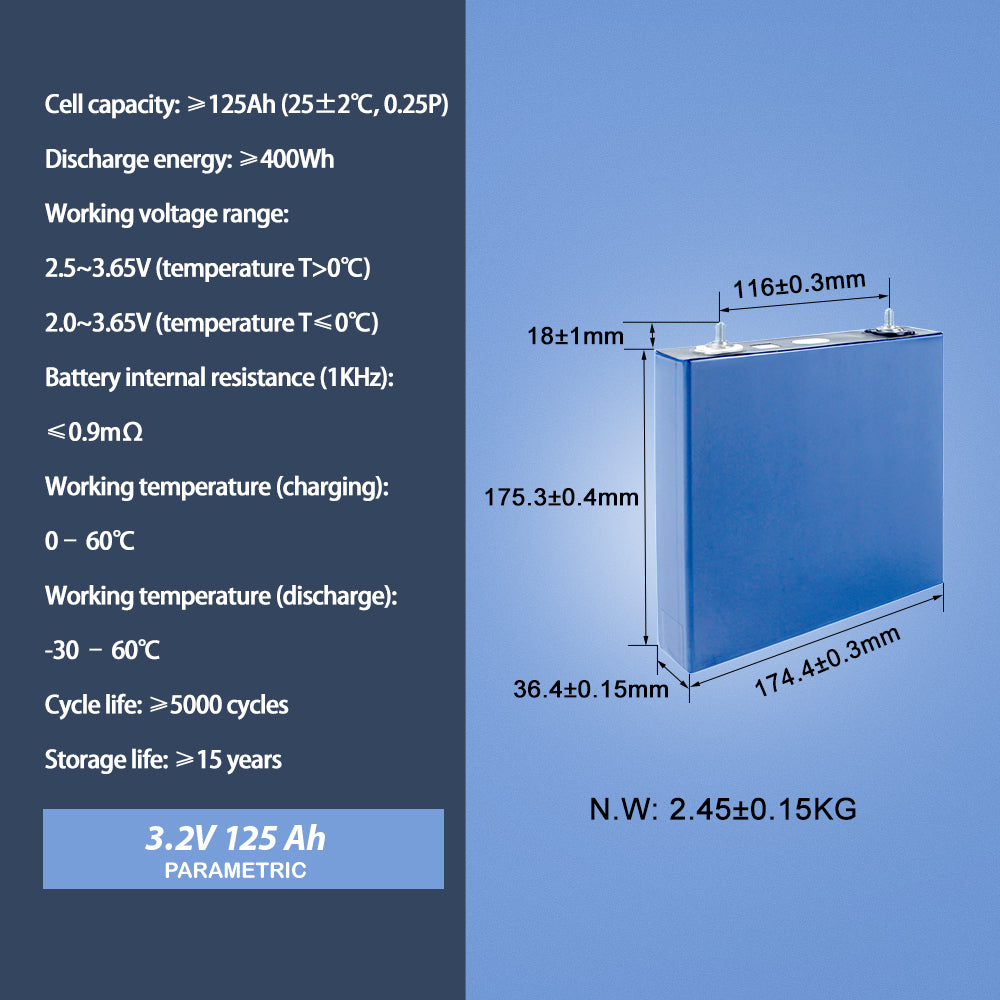

Nominal voltage: 3.2V
Standard capacity: 125AH
Weight: 2.45 kg
Size: 174.4*36.4*175.3mm
Charge voltage: 3.65 ±0.05V
Cut-off voltage: 2.0±0.05V
Internal resistance: ≤1mΩ
Standard charging current: 0.5C
Standard discharge current: 0.5C
Max. Charge Current: 1C
Max. Discharge Current:1C
Charge temperature: 0℃～55℃
Discharge temperature: -20℃～60℃

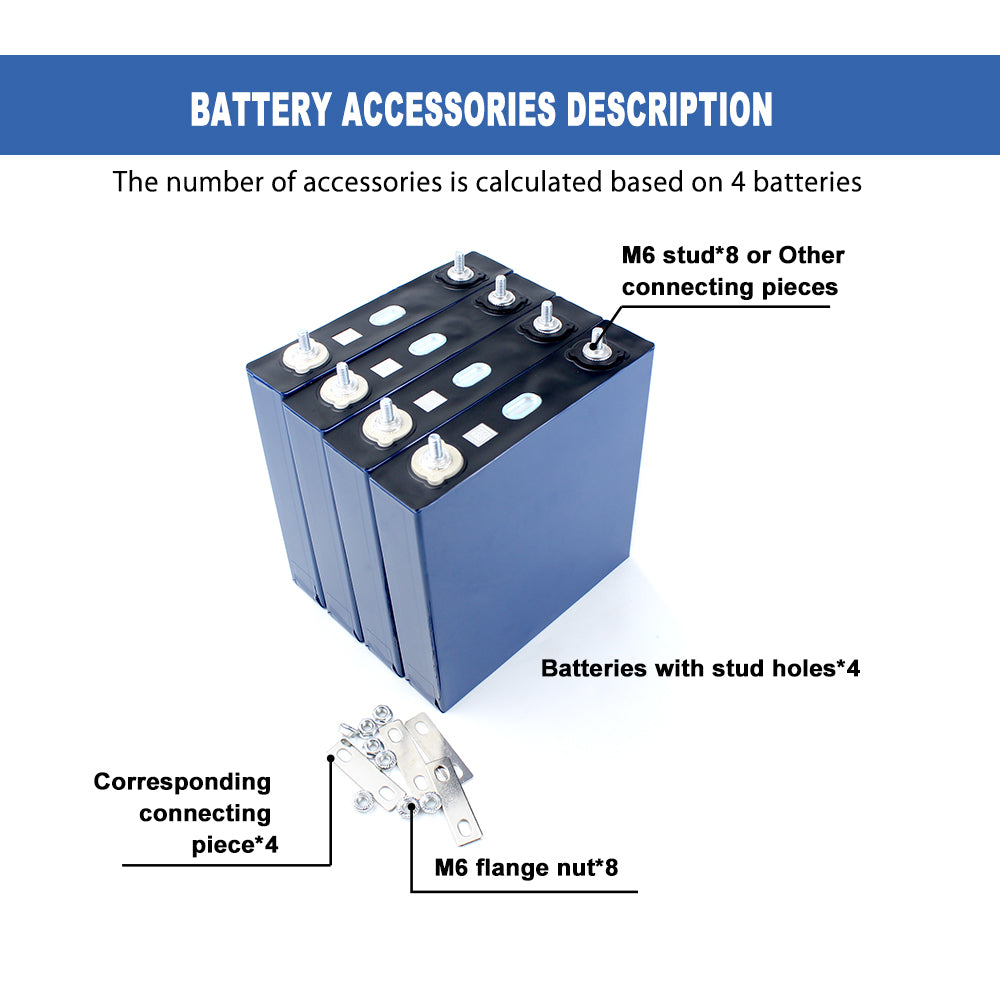

1. For easy assemble, we will weld the M6 studs on the cell, each battery will send 1 pcs copper busbar and 2 nuts. If you have other requirement of the screw size, please contact us.

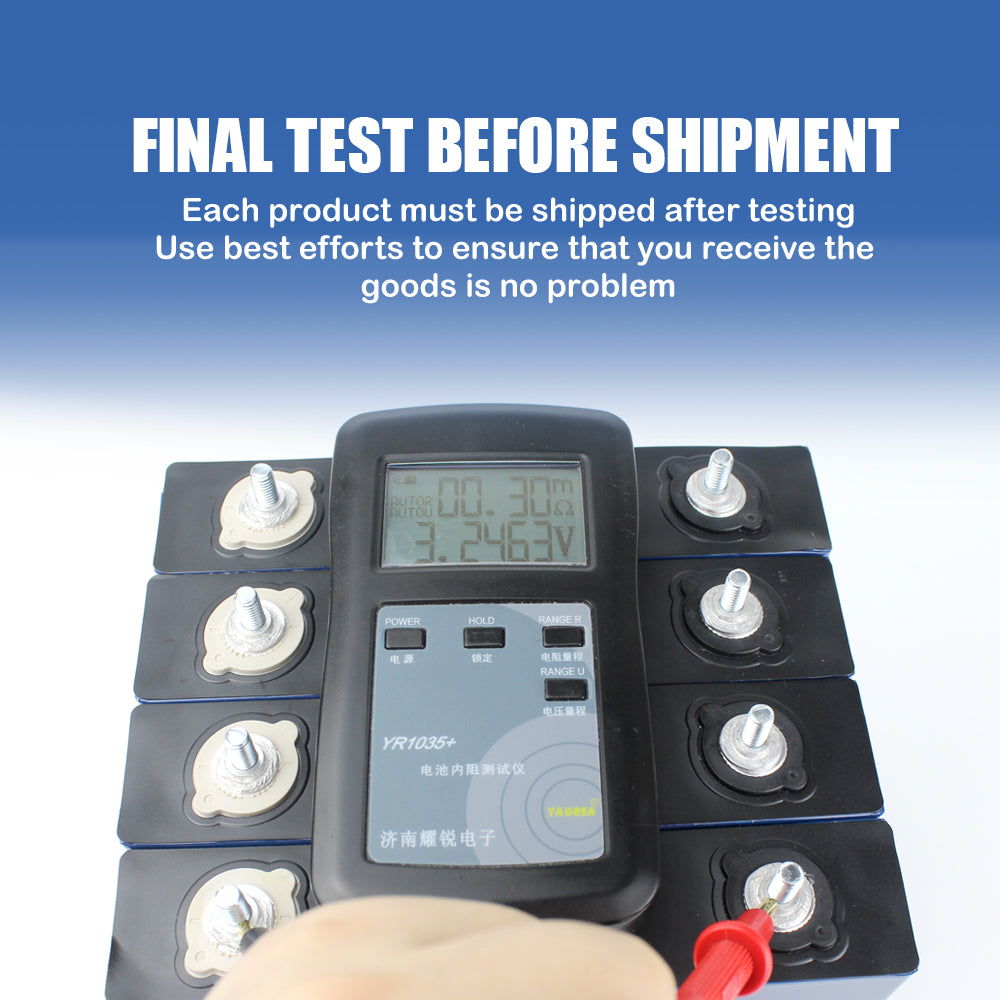

2. Before we ship the batteries, we will match the cell's capacity, voltage, resistance. Make sure each cell is good.
3. When you receive the batteries and want to assemble them, please make sure the cell's volatge is the same. And match the right BMS.
4. The battery is suitable for DIY lovers with experience.
Solar energy storage, solar power system, UPS supply, Engine starting battery, Electric bicycle/motorcycle/scooter, Golf trolley/carts, RV, EV, Caravan...
